What is a Narrow Bandpass Filter?

A narrow bandpass filter is an electronic or optical device that allows signals within a very specific frequency or wavelength range to pass through, while blocking signals outside of that range. Compared to standard bandpass filters, narrow bandpass filters are designed with a much tighter passband, often only a few nanometers in optics or a few kilohertz in radio frequency applications. This makes them essential in applications where precise signal selection and noise reduction are required.

How Does a Narrow Bandpass Filter Work?

A narrow bandpass filter works by combining both low-pass and high-pass filtering mechanisms. The high-pass portion removes signals below a certain cutoff frequency, while the low-pass portion removes signals above a certain cutoff frequency. The overlap between these two cutoffs forms a narrow “window” or passband, which only allows the desired frequency or wavelength range to pass through.

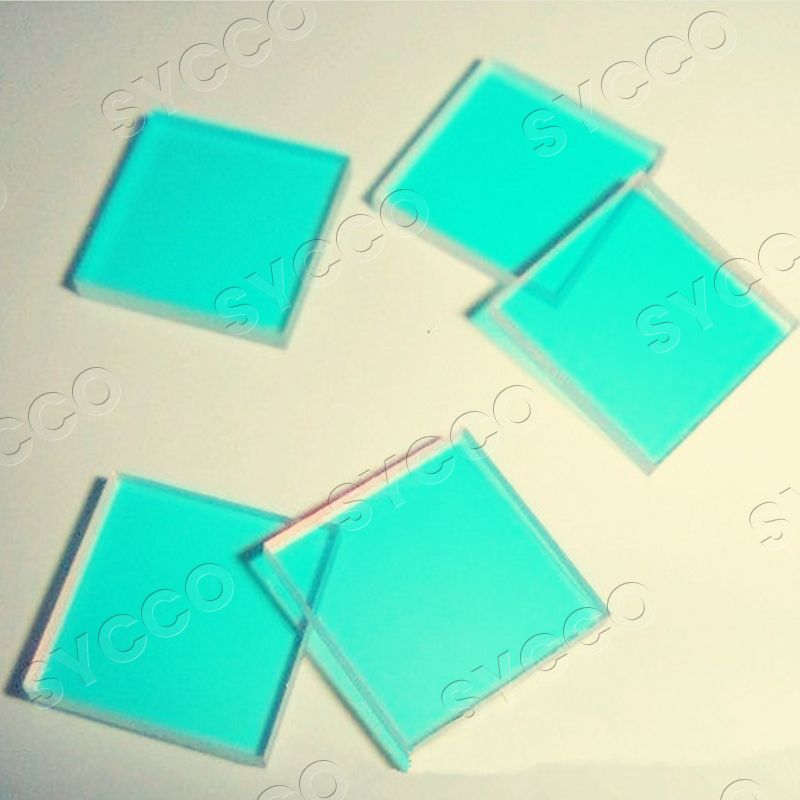

In optical systems, these filters use thin-film coatings that rely on interference effects to transmit only a narrow range of wavelengths. In electronic systems, resonant circuits or digital signal processing methods may be used to achieve the same effect.

Applications of Narrow Bandpass Filters

Narrow bandpass filters are widely used across industries and technologies, including:

  • Telecommunications: To isolate specific frequency channels in radio, microwave, or fiber-optic communication systems.

  • Medical imaging: For fluorescence microscopy or spectroscopy, where only a specific wavelength of light needs to be detected.

  • Remote sensing and LIDAR: To enhance the detection of particular wavelengths reflected from surfaces or atmospheric gases.

  • Laser systems: To clean up the spectral output and remove unwanted background light.

  • Astronomy: For detecting specific spectral lines emitted by stars and galaxies.

Narrow Bandpass Filter vs Wide Bandpass Filter

While both filters pass a range of frequencies, the difference lies in the bandwidth:

  • Narrow Bandpass Filters: Have a small passband and are used for precise wavelength or frequency isolation. They provide higher signal-to-noise ratios but often come with higher insertion loss and cost.

  • Wide Bandpass Filters: Allow a broader range of frequencies to pass, which is useful when exact precision is not needed. They generally have lower insertion loss but less selectivity.

In short, narrow bandpass filters are chosen for precision, while wide bandpass filters are chosen for flexibility.

Types of Narrow Bandpass Filters

There are several types of narrow bandpass filters, depending on the technology and application:

  • Optical thin-film filters​ – Used in lasers, cameras, and spectroscopy.

  • Fabry–Pérot filters – Based on multiple-beam interference, often tunable for variable bandwidth.

  • Interference filters – Designed with dielectric coatings to transmit a specific wavelength.

  • LC circuit filters – Electronic filters made using inductors and capacitors for RF or audio applications.

  • Digital bandpass filters – Implemented in signal processing software for precise filtering of digital signals.

How to Select a Narrow Bandpass Filter

Choosing the right narrow bandpass filter depends on several factors:

  1. Center Wavelength (CWL) or Frequency – Select the filter with a passband centered on your desired signal.

  2. Bandwidth (FWHM) – Determine how narrow the passband should be based on your application.

  3. Transmission Efficiency – Check how much of the desired signal is transmitted through the filter.

  4. Blocking Range – Ensure the filter effectively blocks unwanted signals outside the passband.

  5. Material and Durability – For optical filters, consider coatings, temperature stability, and environmental resistance.

  6. Cost vs Performance – Narrower filters typically cost more; balance precision needs with budget.


✅ In summary:

Narrow bandpass filters are powerful tools for isolating precise signals in electronics and optics. Whether you’re working in telecommunications, medical imaging, or laser systems, choosing the right type and specifications will ensure maximum performance for your application.
